The Carli leveling system for factory auto leveling air 2014+ Ram 2500 trucks is a dramatic improvement over stock ride, but hits a very reasonable price point. This is also the ONLY Fox 2.0 leveling kit on the market specifically designed for factory air Ram 2500s, with custom tuned shocks and supporting parts designed to work with the factory rear airbags.
This system is designed for the customer that keeps their truck on the road with an eye for quality and appreciation for bang-for-their-buck. At the heart of this system is a 2.5” lift, Linear Rate Coil Spring paired to matched travel Fox 2.0” IFP Shocks that have been custom tuned, in house at Carli, for superior ride quality and handling SPECIFICALLY to the air-ride truck. The tuning in these shocks is completely different than those offered for the coil spring trucks. The included Adjustable track bar centers the axle to the frame.
We recommend a 35” tire on an 18” wheel that’s no more than 9” wide with 0 to +27 offset. To fit 37s on a Ram truck we recommend a +12 to +27 offset wheel that is no wider than 9,” as well as some mild trimming of the plastic fender liner and maybe pinch weld depending on the tire.
SKU: CS-DLEVEL-1419-D-AR
Dodge 2.5" Leveling System, Diesel, 2014-18 & 2019+ 2500 Base Kit
AIR RIDE ONLY!

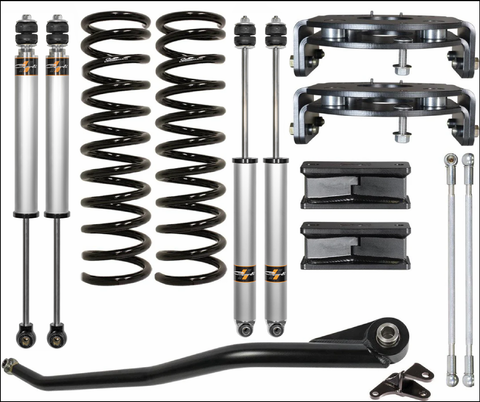

Base Kit Includes:
CS-DLRC-14-LVL-D Leveling Front Coils
CS-DLEVELSPKG-14-D-AR Front and Rear Fox 2.0 Shocks, Custom Tuned, Air Ride Specific
CS-DATB-1419 RAM Adjustable Track Bar, 2014/2019
CS-DAR-14-LVL-BLOCK Airbag Spacer, Leveling Configuration
CS-DRBD-1.875 Rear Bump Stop Drop, 1-7/8"
CS-DAR-14-LVL-LINK 2014+ RAM 2500 Extended Sensor Link, Leveling Configuration
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″ | 1″ | 9″ | 9″ | 2.0″ | 35″ x 12.5″ |
Customer Reviews
Hands down best riding suspension!

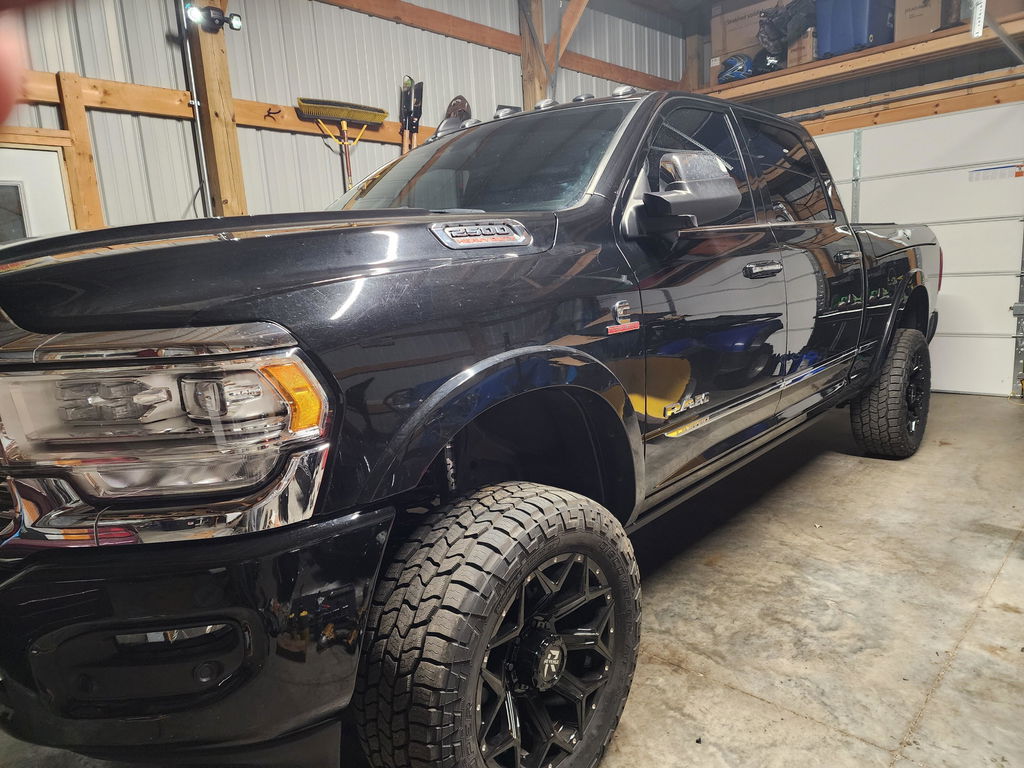

Installed the carli fox suspension level for factory air suspension truck along with carli ball joints in my 2019 ram 2500. The ride is much more comfortable and the truck sits perfectly. Only gripe is that somehow the wrong instructions were packaged with the parts; however, proper instructions were easily found online. Straight forward installation. Wrong instructions only left confusion on how to install air bag spacer, but again, easily remedied.
If I could give this review 10 stars I would. Outstanding quality throughout the entire kit. Truck rides how an air ride truck should thanks to this system.
Along with an amazing kit, CJC’s customer service is top tier. These guys know their stuff and are beyond helpful! Don’t wait, order your system today!
As always CJC Off Road ROCKS!!
Needed help with a Western plow on my new 2500 Rebel. Carli kept coming up everywhere I read. After speaking to them and listening to their recommendations, I pulled the trigger. Ride quality, handling, handling the plow weight is all excellent. And yeah, Fox shocks! Worth every penny.
