);">This Carli Suspension Ford Super Duty Signature Series Level Height Base Kit is a budget friendly way to level your Super Duty, while getting the foundation for future upgrades and covering all the key alignment parts normally skipped in spacer lifts.
This system includes new Carli tuned level height front coils, Carli's custom Signature Series shocks, caster shims, brake lines, bump drops and radius arm drops. This kit also gives the option to add matching rear shocks and a track bar. The track bar is a highly recommended add on to address geometry after the height increase.
Lift Height Note: 2020 Super Duties were lowered 1” from the factory when comparing to the 2017-19. Further, the Tremor Package is a factory 2” lift on the 20-22 platform putting them 1” taller than the 17-19. As these all START at different heights yet utilize the same lifts, the stated lift height is different. They’ll all end up measuring the same with the lift installed.
If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. If you find your truck is rear low, we recommend this block kit.
A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar Option to form a complete system.
Please note if your truck is a 2023+ Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need load scale brackets to fix the sensors in place and remove the sensor linkage.

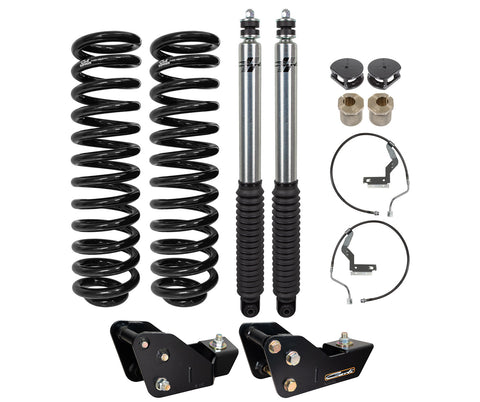

COMPONENTS
-Carli Front Ford Super Duty 2.5" Leveling Coils
-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops
-Carli Radius Arm Drops
OPTIONAL
-Carli 2017+ Ford Progressive Add-A-Packs & Rear Bump Drops
-Carli 2017+ Ford Full Progressive Rear Leaf Springs
-Carli Ford Super Duty Fabricated Radius Arms
APPLICATIONS
This kit will fit all 2023+ Ford F250/F350 Super Duty 4x4 pickups.
