USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. These Carli tuned King 2.5 shocks have stainless shock shafts, and Carli's custom tuning and pistons for the best ride possible from a 2.5" body shock. These shocks are also specifically tuned to work with the long arm suspension kinematics.

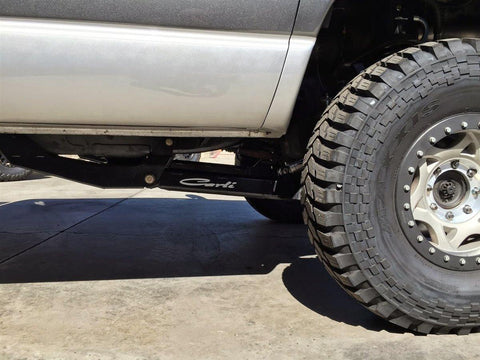

LONG ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. The long arms move the pivot point rearward, offering less resistance to movement, and a perfect 50/50 split between up and down travel for optimal tuning and ride.
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. We highly suggest adding the Torsion Sway Bar with this system to unlock the full potential.
Carli Suspension's Performance 2.5 System is the first step into Carli's latest long arm systems as well as Carli's custom pistons. The performance 2.5 delivers Carli's signature ride quality and performance on and off-road. The new Carli Performance 2.5 3" 4 Link system includes features usually not found standard on other kits such as Carli long arms, Carli Full Progressive Leaf Springs, Carli Torsion Sway Bar, Stainless Braided Brake Lines, and Carli heavy duty rear shock mounts.
This system fits Dodge Ram 2500 and Dodge Ram 3500 4x4 trucks from 2010, 2011, 2012, 2013.
FEATURES
-King 2.5" Piggy Back Reservoir Rear Shocks
-King 2.5" Remote Reservoir Front Shocks
-Carli 4 Link System
-Corrosion-Resistant Stainless Shock Shafts
-Carli Full Progressive Leaf Springs
-Linear Rate Coil Springs
-Zinc Plated U-Bolts
-Carli Stainless Sway Bar End Links or Carli Torsion Sway Bar
-Fabricated Shock Towers
-Fabricated Rear Shock Mounts
-Limit Straps
-Carli Adjustable Track Bar
-Stainless Braided Brake Lines
-High Misalignment Spacers
-Reservoir Mounts
| Front Lift |
Rear Lift |
Front Travel |
Rear Travel |
Shock Diameter |
Tire Fitment |
| 3.0″ – 3.5″ |
1.5″ – 2″ |
12″ |
13″ |
2.5″ |
37″ x 12.5″ |
