Heavy Duty Sway bar links are a point of contact between the sway bar and the trucks suspension to help minimize body roll. These Synergy Ram Heavy Duty Sway Bar Links are much stronger than the stock alternative, featuring greaseable spherical bushings that allow resistance-free articulation of the sway bar links and up to 30 degrees of bind free misalignment!
Fitments:
Part # Description
8515-11 Synergy Dodge 0-3" Lift Heavy Duty Sway Bar Links, Powdercoated
8515-12 Synergy Dodge 3.5-6" Lift Heavy Duty Sway Bar Links, Powdercoated
2006-2008 Dodge Ram 1500 Mega-cab 4x4
1998.5-2013 Dodge Ram 2500 4x4
1998.5-2013.5 Dodge Ram 3500 4x4
Warning: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages
Benefits:
Spherical bushing and sealed tie rod end provides a direct linkage to axle
Available for 0-3" and 3.5-6" lifts
Much Stronger than stock
Drastically reduces body roll
Features:
Constructed from high quality 1020 CR Solid
Clear zinc plated for maximum corrosion resistance
Stem top adapter eliminates the problematic factory "pancake" bushing on the sway bar end
Spherical Bushing provides 30 degrees of bind free misalignment
100% bolt on components assures an easy, trouble-free installation with the use of basic hand tools **
Made in USA
**Some early model trucks require minor drilling on axle mount for installation

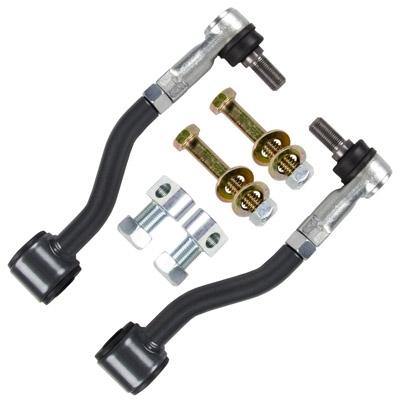

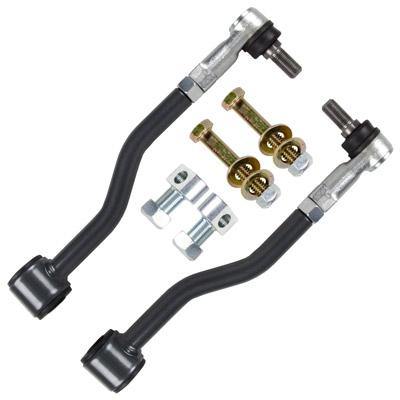

Includes:
(2) 8515 sway bar links
(2) Sway bar link ends (sealed tie rod ends)
(2) ½"-12 UNC jam nuts
(2) 851501 stem top sway bar link adapter
(2) 5/8"-18 tapered nuts
(2) ½"-12 UNC x 3.0" long hex head bolt GR8
(2) ½"-12 UNC Stover nut
(4) ½" flat washer GR8
Min/Max Length:
Measured in a straight line from center of bolt hole to center of bolt hole
8515-11
Minimum Collapsed: 7 1/2"
Maximum Extended: 8 1/2"
8515-12
Minimum Collapsed: 10 7/16"
Maximum Extended: 11 3/8"
Note:
Model year 1994-2002 trucks require Synergy Heavy Duty Steering Kit 8525-02 and 8525-03 to be installed for the Sway Bar End link to properly clear the steering linkage.
For the 8515-11 Heavy Duty Sway Bar Links to be used on a 1998-2002 Ram, part number 4006-01 must be used
Model year 2003-2009 trucks may have clearance issues on passenger side if vehicle is equip with factory Y-link steering kit.
