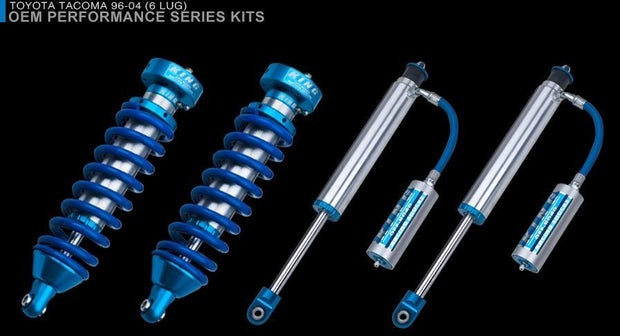

Vehicle Application: TACOMA 96-04 and 4RUNNER 96-02
Internal Design: Monotube
Internal Design: Monotube
Shock Absorber Type: Gas Charged
Damping Type: Normal
Adjustment Type: Without Adjustment
Height Adjustment Type: Threaded Spacer
Shock Absorber Outer Diameter: 2.5"
Reservoir: Without External Reservoir
Lightweight Hard Anodized 6063 Aluminum Alloy Reservoirs
Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination.
Internally threaded Top Cap
Internally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body.
Fittings
High quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking.
Shock Cylinders
2.5" Shock cylinders are precision bored to within +/-.001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function.
Truncated Thread Design
Coilover shocks are machined with own truncated thread design for ultimate strength and trouble free spring preload and height adjustments.
Piston
The heat treated 6061 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
Coil Adjuster Nut
Pinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.
Shaft
Large 3/4" or 7/8" diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
Wear Bands
Wear bands are made from Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
Rod End
High strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long lfie with no metal to metal contact.
Mounts
Aluminum components and vehicle specific moutns are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting crackets and hardware along with detailed installation instructions.
Reservoir
Internal reservoir allows easy bolt-on installtion and guards against shock fade during sever use.
