- This only fits the 2003-2007 trucks, so long as you have the 2008-2013 OEM upgraded Mopar steering installed!!!! You should have this regardless, as it is a big upgrade.
- The provided clamp has an approximate 1.57" bore, designed to fit the OEM Mopar size steering tie rod. If you have aftermarket steering, you may need to fabricate some type of a shim if your tie rod diameter is different/smaller.
Fox 2.0 ATS(Adjustable-through-shaft) steering damper, specific for the 2008-2013 Ram 2500 and Power Wagon, and 2008-2012 Ram 3500 trucks!
- Does not fit the solid front axle 2 wheel drive trucks.
- This is the adjustable version.
- Through-shaft technology prevents any internal pressure from inducing steering push/pull.
- ATS uses metal bearing ends to be more effective, and is externally adjustable.
- ATS is great for larger tires, as in the firmer settings are much more effective at controling wobble.

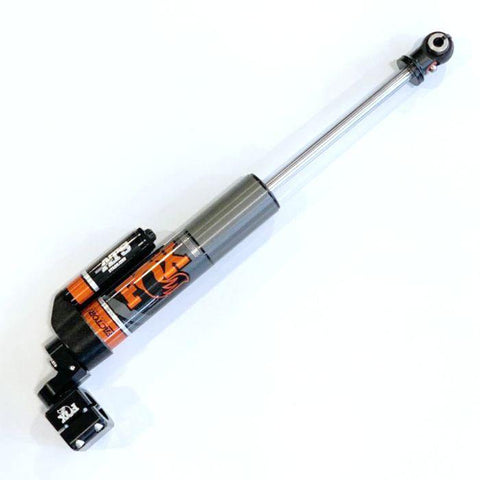

- Comes with bracket shown, needed for installation.
With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.
The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.
| Body | 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | External reservoir design separates shock oil from the high-pressure nitrogen |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Adjustments | Adjuster - 24 clicks of adjustability |
| Travel (in) | 8.100 |
| Compressed (in) | 17.150 |
| Extended (in) | 25.250 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
