Carli's 2.5" Back Country 2.0 system was developed for outstanding on-road ride quality, with off road performance when you need it. Custom Carli SPEC Shocks with Carli's proprietary tuning provide enhanced comfort and control while still delivering off-road capability. The Carli SPEC 2.0 Shocks are built specifically for Carli and designed to work specifically with their springs front and rear. Your truck will sit level, have more wheel travel, have plush ride quality, and maintain OEM towing and weight carrying capacity. Please note: Gas systems use custom Carli spec'd Fox shocks, while Diesel systems use Carli's own in house shocks.
We do not recommend running a Backcountry system with stock rear leaf packs, as the shock valving was designed around the softer rate Carli leaf springs, and can feel a bit bouncy with stock leaf packs. If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. If you find your truck is rear low, we recommend this block kit.
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

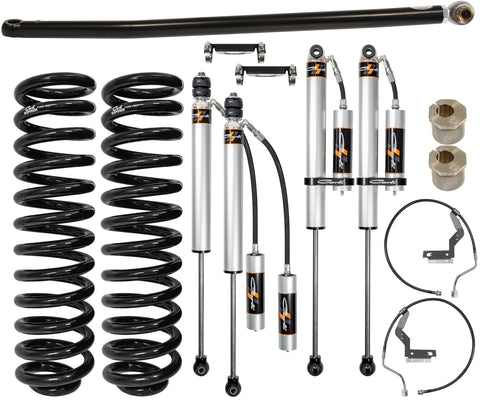

COMPONENTS
-Carli SPEC 2.0 Backcountry Remote Reservoir Shocks
-Carli Linear-Rate Coil Springs
-Adjustable Track Bar
-Billet Aluminum Front Bump Drops
-Caster Correction Cams
-Stainless Braided Brake Lines
FEATURES
-Aluminum Bodied Shocks
-Direct Fit Application
-Long Lasting Bushings
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability Reducing and/or Eliminating Body Roll
-Tighter Street Feel Driving Characteristics
-Increased Suspension Response Steering geometry is all within OEM specs, no additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability
ALTERED VEHICLE CHARACTERISTICS
-Level 2.5" of Lift on the Front
-F250: 2" of Rear Lift
-F350: 1" of Rear Lift
-Vehicle is "Leveled"
-9" of Front Wheel Travel
-12" of Rear Wheel Travel
*F350's will require the factory F250 rear block to obtain a level stance if using the standard included rear add-a-pack. F250 blocks are not necessary if full progressive leaf springs are chosen above. F250 rear blocks are available in the options above.
FITMENT GUIDE
Year Model Part Number
2011-2016 FORD F250 / F350 4x4 CS-FLVL-BC20-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-BC20-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-BC20-05
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″ | 0-2″ | 9.6″ | 13″ | 2.0 | 35″ x 12.5″ |
Customer Reviews
2015 Dually that tow heavy and a lot….flat out awesome. Will be upgrading to Carli shocks once the fox shocks lay down. Don’t wait, do it
If you want your 8000 pound truck drive like a Cadillac then look no further. These kits are the best! The custom valving of the shocks is awesome.
I have a 2012 F350 King Ranch SRW 4x4. It's my daily driver as well as hunting/fishing/off-road vehicle as well. While I didn't initially want to invest this much money it has by far exceeded my expectations. I went from feeling like my spine would snap when driving over the smallest bump at highway speeds to feeling like I'm driving on clouds. I haven't had the opportunity to get it off-road or do any significant towing yet. If for some reason it doesn't continue to exceed my original expectations I will update this review. I don't foresee any issues. In addition to this kit, I installed the Apex Steering kit as well as the 2.5" Progressive Spring Pack.
The only negative (and it's was my lack of research) the air bags I had on the truck will no longer fit due to the factory block being removed when installing the progressive spring pack. So unless you can fabricate a bracket or find one online, you will need to add the long travel airbags (Carli long travel bags will add a little over $1,000 to your overall cost.)
Overall, I would, hands down, recommend this for anyone looking for a do-it-all suspension system that is the best of both on and off road worlds.
I love the 2.5 backcountry , good height and drives great to. CJC did a great job and were super to work with and it only took one day to do , thanks again CJC off road
Carli Ford Super Duty 05-16 Backcountry 2.0 System (2.5" Lift)
