The Carli Leveling System was designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift. The included front Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts, we back them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.
Your truck will sit 2.5" higher in the front with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. Front custom-tuned Signature Series shocks increase the suspension control while the brake line tabs ensure you can make the most of your newfound suspension down-travel. The axle will be off center toward the driver's side 3/4" unless the optional Adjustable Track Bar is purchased. Caster Shims round off the off the front end geometry while improving on the stock handling.
As this system does not include anything for the rear, factory towing and payload capacity are maintained. This is an entry level system that only requires an upgrade to one of our many signature tuned shock packages and an Add-a-Pack or full progressive leaf spring pack to be converted to one of the higher-end systems.
The Leveling System will level the front of the truck to the rear on Super Duties equipped with the factory, 3-5/8" rear block. If your block is smaller, we recommend swapping to something in that size range.
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.
SPECIFICATIONS
-2.5" Front Lift
-Custom coil spring rate
-Maintains steering geometry
COMPONENTS
-Front Leveling Coils
-Carli Signature Series Shocks
-Caster Correction Shims
-Brake Line Relocation Tabs
APPLICATIONS
This kit will fit all 2005-2015 Ford F250/F350 Super Duty 4x4 pickups.
*F250's will require the factory F350 (non-dually) rear block to attain a level stance as there is no add-a-pack with this system. These factory blocks are available in the options above. F250 trucks with rear add a packs (available above) do not require changing your rear blocks for level stance.
FITMENT GUIDE
Year Model Part Number
2005-2016 FORD F250 / F350 4x4 CS-FLVL-05
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″ | 0″ | 9″ | Stock | 2.0 | 35″ x 12.5″ |
Customer Reviews
Fast shipping

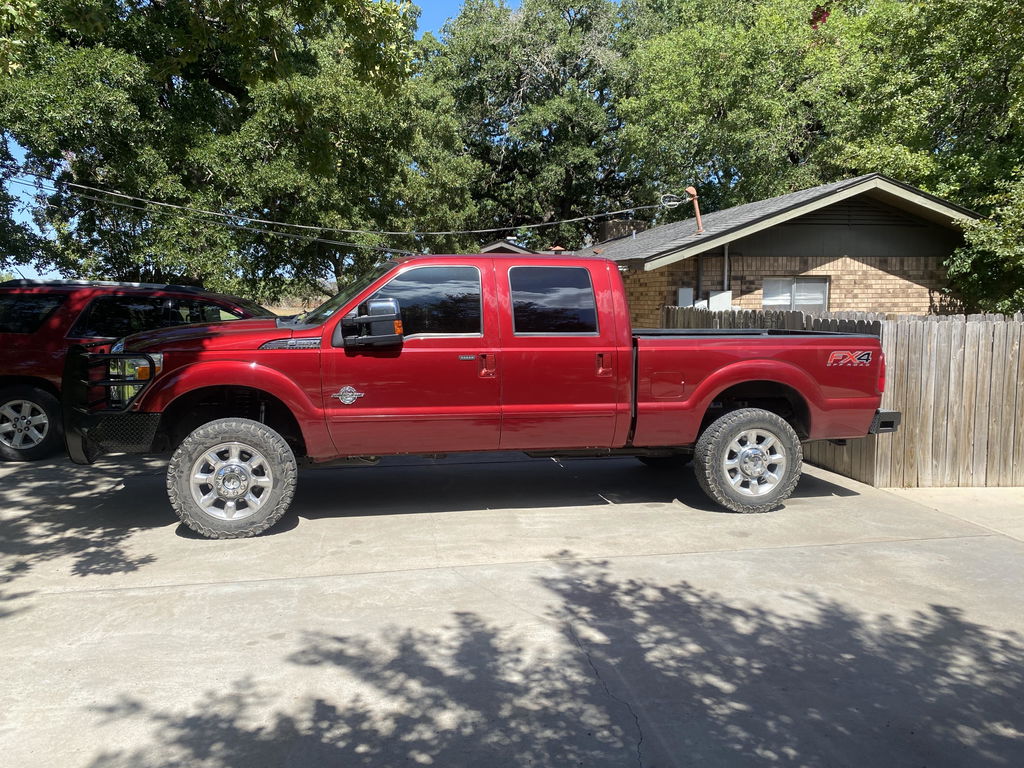

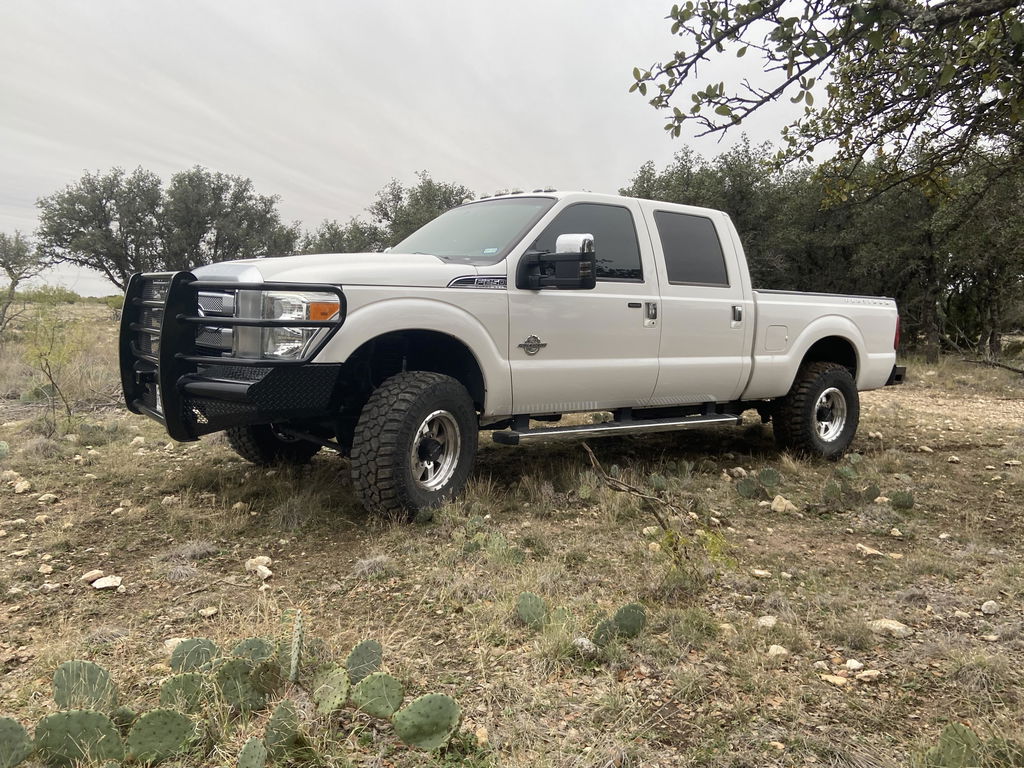

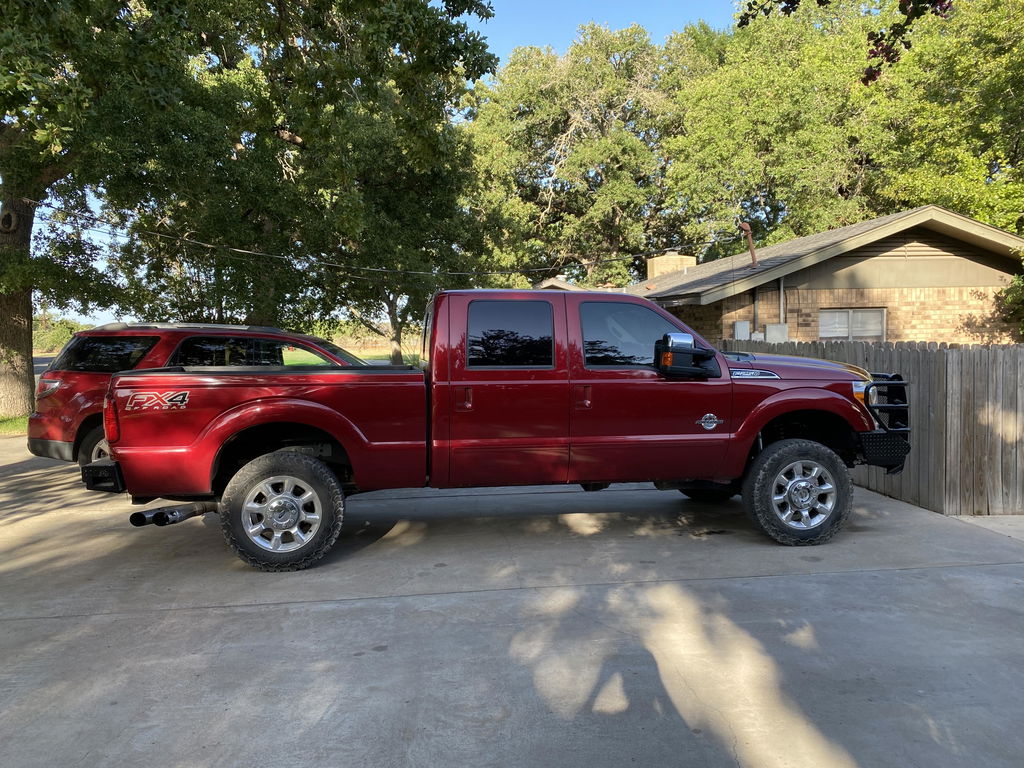

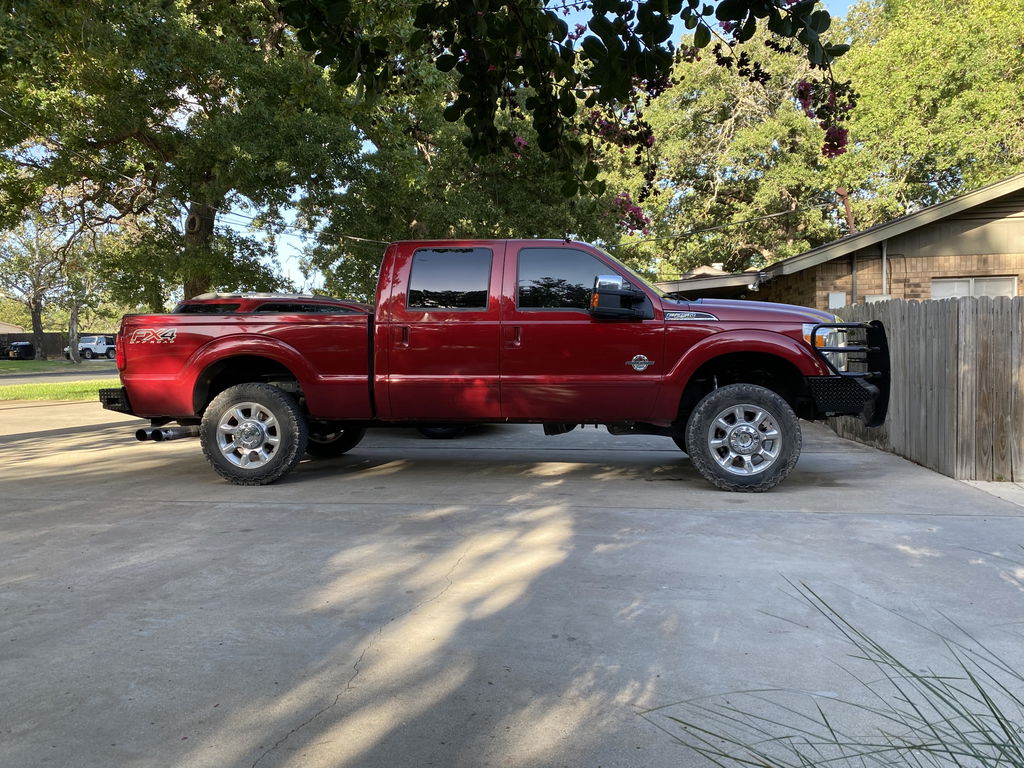

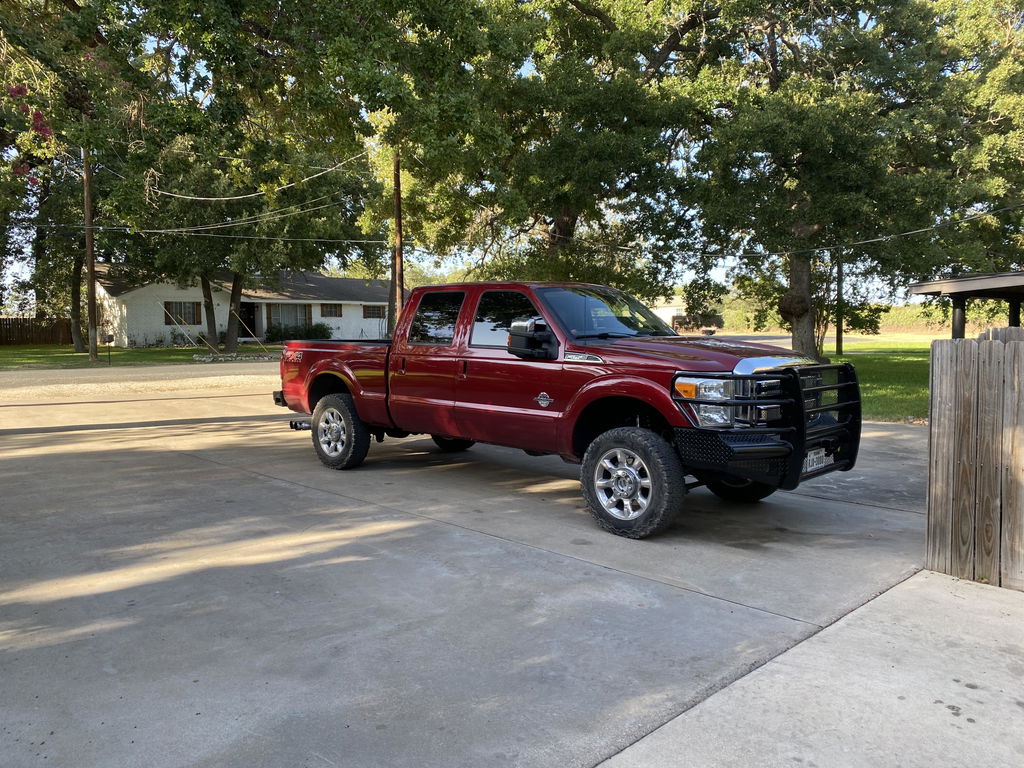

This kit drastically improved the on and off-road handling of my 2015 F250 diesel. There are certainly uses for the more expensive Carli kits, but this one is fantastic for a daily driven truck that needs a little better performance for outdoor adventures on the weekends.
I ordered this kit from CJC Off-road and it shipped very quickly which surprised me. The kit was extremely easy to install. The Carli instructions weren’t the best and didn’t completely match the kit I got but everything was pretty self explanatory. Even tho I got the absolute lowest end Carli kit for my truck, the increase in comfort on the road is absolutely amazing and light years ahead of a spacer lift. I recommend Carli products to all my friends now.
