Volume: approximately 0.5 qt. over stock Dimensions: Click here for dimensions. Check for clearance with wheels straight, left and right and at limits of suspension. This cover is a bolt on replacement for the stock cover on the American Axle Manufacturing (AAM) 9 1/4 inch ring gear differential used in Dodge Ram trucks. PML designed this cover for the front differentials on:
2013 Ram 3500 and 2014 and newer Ram 2500 and 3500 have a new front end with a football shaped cover and we are working on a heavy duty cover for that application. Always check your truck to verify differential and clearance. This differential cover features a low profile for clearance and oil fill/level check and drain holes to make it easy to follow the 15K oil change interval. Extra capacity, fins, and aluminum construction aid in heat dissipation to keep fluid cool. This cover replaces PML part number 10740. |
Why a Low Profile Cover?
|
Because of many clearance issues with steering, u-bolts, and suspension, PML maintained a low profile with partial fins with this cover. Starting in about 2008, Dodge added a u-bolt to the front end design that would contact larger aftermarket covers when at the limit of the steering. This u-bolt was retrofitted on early year trucks during service visits. The suspension on Megacabs would also contact a larger cover when the truck was loaded. To avoid these problems, PML designed this cover. |
PML Cover Compared to Stock
 |
This PML cover is on the left and the stock differential cover from a 2007 Ram 2500 Mega cab is on the right. The PML cover follows the contour of the stock cover to maintain clearance. The fin-free left side prevents interference with the u-bolt. |
|
The PML cover is larger than the stock cover so please check your truck carefully to make sure you have space for a larger cover. Reference the dimensions in the above link. | ||
Rear Differential Cover
PML makes a matching rear end cover for these Ram trucks. Please see the AAM 11.5" ring gear, 14 bolt cover (click here) or the AAM 10.5" ring gear, 14 bolt cover (click here). |
Gasket
|
PML recommends RTV gasket material. RTV is a type of silicon rubber and it comes in a tube. There are several brands, such as Permatex, and these are readily available at automotive stores like Pep Boys and AutoZone. Some people use the reusable factory gasket. Please make sure the gasket is clean and free of any nicks. If there is a nick in the gasket, that is where you'll get a leak. This PML cover is compatible with Mopar gasket part number 5086682AA. |
Optional Temperature Sending Unit
This part has an undrilled boss for a temperature sensor. The option to have PML drill and tap the boss will need to be ordered over the phone, not on-line, and there is an additional charge of $40 per hole. |
PML Differential Cover Compared to Stock
|
|
These images show this PML differential cover compared to the stock cover. |

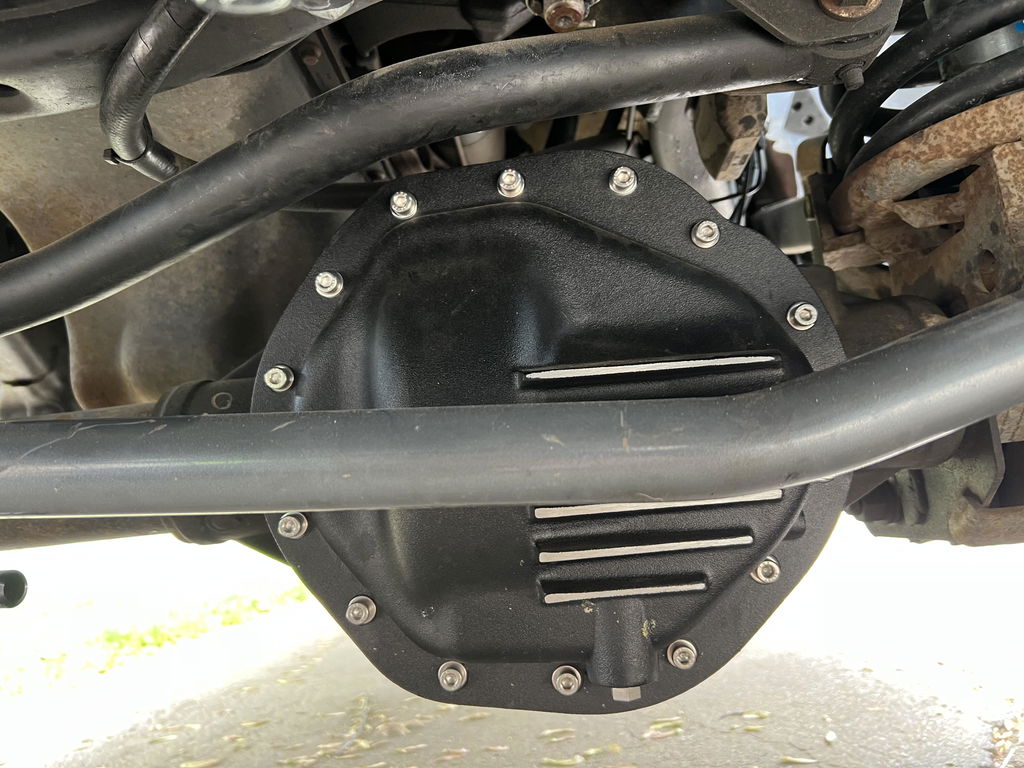

Installations
This cover has been installed successfully on several trucks. |
2007 Ram 2500 Mega Cab with PML Front Differential Cover Installed
|
Larry installed this PML differential cover on his 2007.5 Dodge Ram 2500 Mega cab 4x4 with the 6.7L Cummins diesel. He noted the clearance with the steering at the stops on the left and right at ½ an inch minimum. In the forward position, the clearance with the stock cover is 2 inches and 1½ inches with the PML cover. These images show (left to right) Ram 2500 Mega cab stock cover, PML cover installed with wheels straight, PML cover with wheels at the right stop, and PML cover with wheels at the left stop. Our thanks to Larry for the pictures and feedback on his installation. |
2010 Ram 3500 SRW Mega Cab with PML Front Differential Cover Installed
|
Dave installed this PML front differential cover on his 2010 Ram 3500 Mega Cab. He reported no issues with the suspension and he did not cut off the end of the u-Bolt. When on a inclined and wheels at full left, he still had clearance. These images show the front axle on a 2010 Ram 3500 Mega Cab. The stock cover is show in the image on the far left and the PML cover installed as seen from the passenger's side in the images in the center and on the right. |
2008 Ram 2500 Quad Cab 6.7 Diesel
|
Larry installed this cover on his 2008 Ram 2500. He has a the U-bolt as shown in the first image. He serviced his differential at the same time he replaced the cover. He wanted a custom look, so he spray painted his cover a shiny red.
|
2013 Ram 2500 Laramie Longhorn 4x4 with PML Differential Cover
|
Andrew Lowe's "Game Over" Ram 2500 with this front differential cover. The PML cover looks great with all the custom work.
|
2010 Ram 2500 HD Crew Cab with PML Differential Cover
|
The pictures below show this PML cover installed on a 2010 Ram HD pickup. The truck has a 3" level kit and all Carli components. The clearance is very tight when the wheel is cycled to the left but makes no contact. Our thanks to Richie's Truck & Auto for installing a PML cover and sharing the pictures.
For a larger picture, please click one of the above images. A separate window will open showing a bigger picture. (The larger pictures take a minute to display.) |
PML Differential Cover Features:
|
Customer Reviews
Clears Thuren Track Bar and Synergy HD Steering on my 10’ 3500. I lost a bolt during my first test drive and PML sent me a replacement immediately, no questions asked! Excellent product quality and customer service.
