Carli Ford Super Duty 05-16 Pintop 2.5 (4.5" Lift) Suspension System

Name: Carli Ford Super Duty 05-16 Pintop 2.5 (4.5 Lift) Suspension System
Brand: Carli Suspension
SKU: CS-F45-PT25-11
Price: 5105.0 USD
Availability: InStock

CS-F45-PT25-11

Free Ships in 1-5 Business Days

$5,105.00

Application

2011-2016

2008-2010

2005-2007

Color

Standard Blue Anodizing with Blue Hoses

Black Anodizing with Black Hoses

Quantity

[{"id":31913912008802,"title":"2011-2016 \/ Standard Blue Anodizing with Blue Hoses","option1":"2011-2016","option2":"Standard Blue Anodizing with Blue Hoses","option3":null,"sku":"CS-F45-PT25-11","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Ford Super Duty 05-16 Pintop 2.5 (4.5\" Lift) Suspension System - 2011-2016 \/ Standard Blue Anodizing with Blue Hoses","public_title":"2011-2016 \/ Standard Blue Anodizing with Blue Hoses","options":["2011-2016","Standard Blue Anodizing with Blue Hoses"],"price":510500,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40023432069218,"title":"2011-2016 \/ Black Anodizing with Black Hoses","option1":"2011-2016","option2":"Black Anodizing with Black Hoses","option3":null,"sku":"CS-F45-PT25-11-BLACKANO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Ford Super Duty 05-16 Pintop 2.5 (4.5\" Lift) Suspension System - 2011-2016 \/ Black Anodizing with Black Hoses","public_title":"2011-2016 \/ Black Anodizing with Black Hoses","options":["2011-2016","Black Anodizing with Black Hoses"],"price":560500,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31913912041570,"title":"2008-2010 \/ Standard Blue Anodizing with Blue Hoses","option1":"2008-2010","option2":"Standard Blue Anodizing with Blue Hoses","option3":null,"sku":"CS-F45-PT25-08","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Ford Super Duty 05-16 Pintop 2.5 (4.5\" Lift) Suspension System - 2008-2010 \/ Standard Blue Anodizing with Blue Hoses","public_title":"2008-2010 \/ Standard Blue Anodizing with Blue Hoses","options":["2008-2010","Standard Blue Anodizing with Blue Hoses"],"price":504500,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40023432101986,"title":"2008-2010 \/ Black Anodizing with Black Hoses","option1":"2008-2010","option2":"Black Anodizing with Black Hoses","option3":null,"sku":"CS-F45-PT25-08-BLACKANO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Ford Super Duty 05-16 Pintop 2.5 (4.5\" Lift) Suspension System - 2008-2010 \/ Black Anodizing with Black Hoses","public_title":"2008-2010 \/ Black Anodizing with Black Hoses","options":["2008-2010","Black Anodizing with Black Hoses"],"price":554500,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31913912074338,"title":"2005-2007 \/ Standard Blue Anodizing with Blue Hoses","option1":"2005-2007","option2":"Standard Blue Anodizing with Blue Hoses","option3":null,"sku":"CS-F45-PT25-05","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Ford Super Duty 05-16 Pintop 2.5 (4.5\" Lift) Suspension System - 2005-2007 \/ Standard Blue Anodizing with Blue Hoses","public_title":"2005-2007 \/ Standard Blue Anodizing with Blue Hoses","options":["2005-2007","Standard Blue Anodizing with Blue Hoses"],"price":498500,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40023432134754,"title":"2005-2007 \/ Black Anodizing with Black Hoses","option1":"2005-2007","option2":"Black Anodizing with Black Hoses","option3":null,"sku":"CS-F45-PT25-05-BLACKANO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Ford Super Duty 05-16 Pintop 2.5 (4.5\" Lift) Suspension System - 2005-2007 \/ Black Anodizing with Black Hoses","public_title":"2005-2007 \/ Black Anodizing with Black Hoses","options":["2005-2007","Black Anodizing with Black Hoses"],"price":548500,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Pintop features 2.5" King shocks with custom tuning and pistons, as well as stainless shock shafts for durability. This system is very capable in high speed off road driving, but still has excellent road manners.

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

Carli Suspension's Ford Super Duty Pintop 2.5 system was developed for outstanding on-road and highway performance while offering King shocks with Carli's custom pistons and valve profile. Off road performance takes a huge step up from the Back Country, while maintaining street ride.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

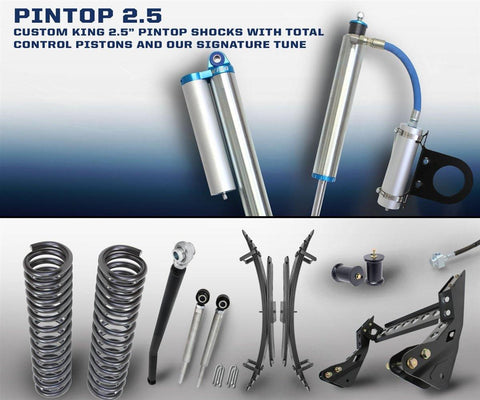

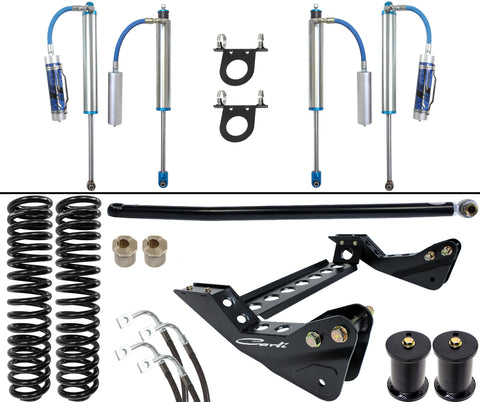

COMPONENTS

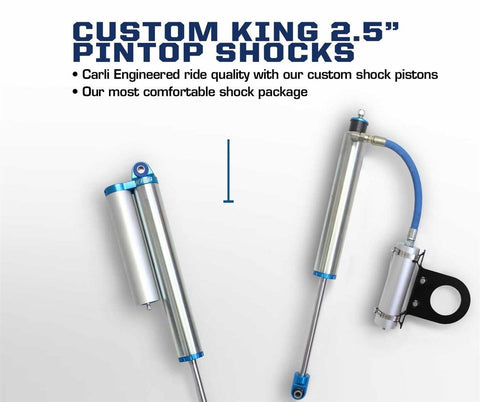

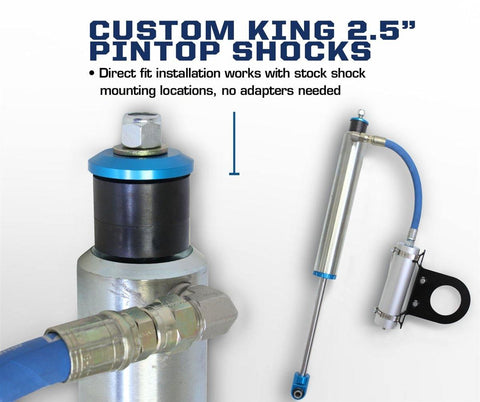

-King Pintop 2.5" Remote Reservoir Shocks
-King Piggy Back 2.5" Remote Reservoir Shocks

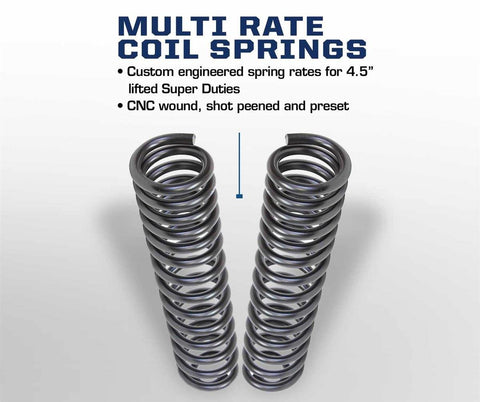

-Carli Multi-Rate Coil Springs

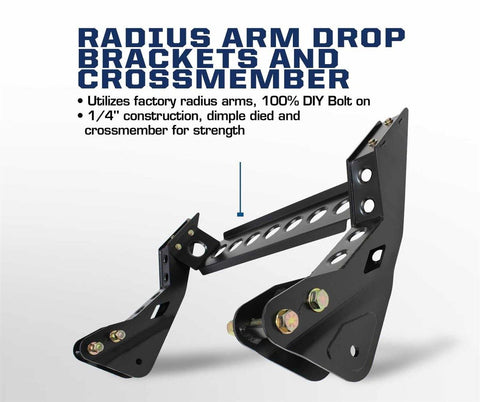

-Radius Arm Drop Bracket Kit with Dimple Die Cross Member

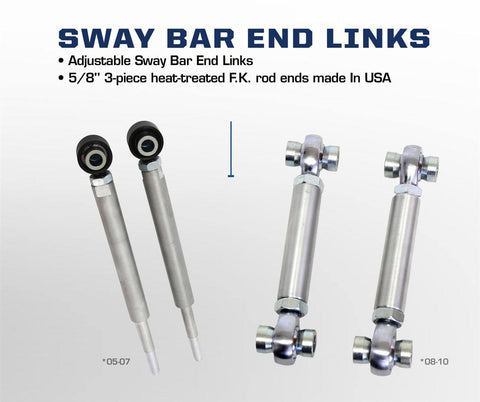

-Sway Bar End links

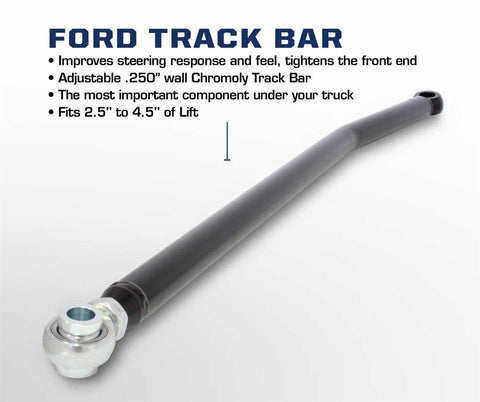

-Adjustable Track Bar

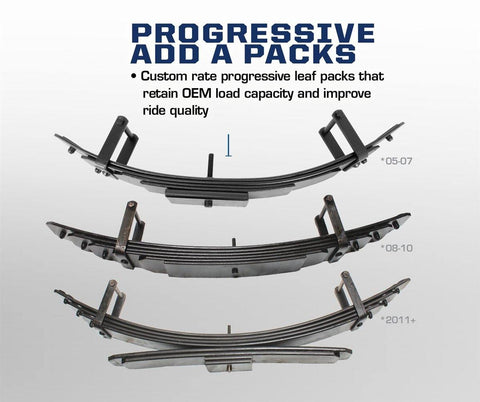

-6 Leaf Progressive Add-A-Pack
-Front Bump Stop Drops
-Extended Braided Brake Lines

FEATURES

-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Corrosion-Resistant Stainless Shock Shafts
-Tighter street feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability

ALTERED VEHICLE CHARACTERISTICS

-4.5" of Lift on the Front
-2.5" of Lift on the Rear
-Vehicle is "Leveled"
-10.0" of Front Wheel Travel
-12.0" of Rear Wheel Travel

*F250's will require the factory F350 (non-dually) rear block to obtain a level stance. These are available with the kit in the options listed above. No blocks will be required to maintain a level stance if Full Progressive Spring Pack Upgrade is purchased or if your truck is an F350 (non-dually).

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-F45-PT25-11
2008-2010 FORD F250 / F350 4x4 CS-F45-PT25-08
2005-2007 FORD F250 / F350 4x4 CS-F45-PT25-05

Front Lift	Rear Lift	Front Travel	Rear Travel	Shock Diameter	Tire Fitment
4.5″	0-3.5″	10.9″	13″	2.5″	37″ x 13.5″
