This Ford Suspension system brings dramatic improvements to the every day street ride, and plenty of dampening for off road use. This system gives 2.5" of lift with 9 inches of wheel travel in the front and 12 inches of wheel travel in the rear. There is a full spring pack option as well as a front bypass shock option. The bypass mount is already built into the coil over mount, so the bypass can be added at any time.
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.
COMPONENTS

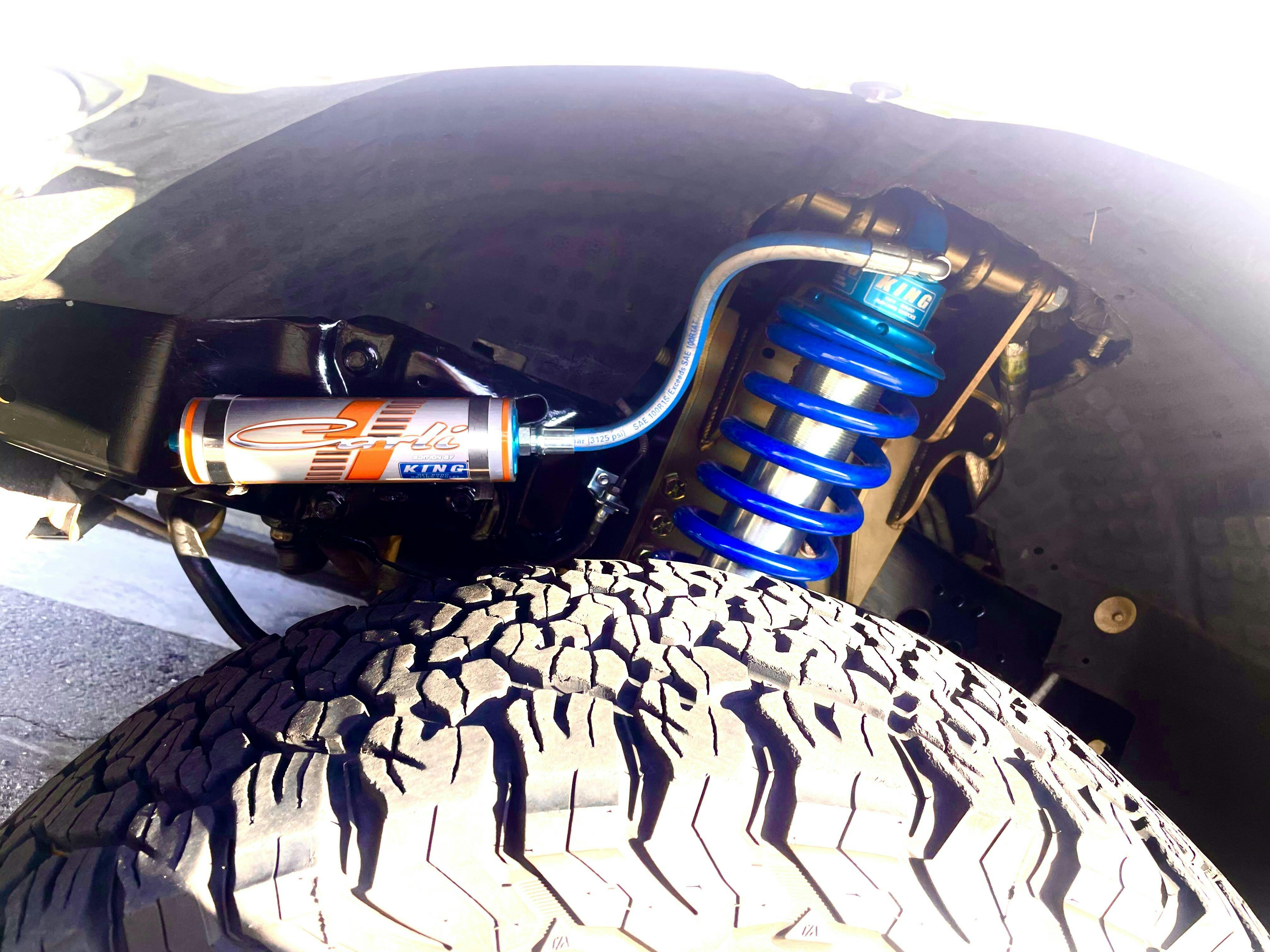

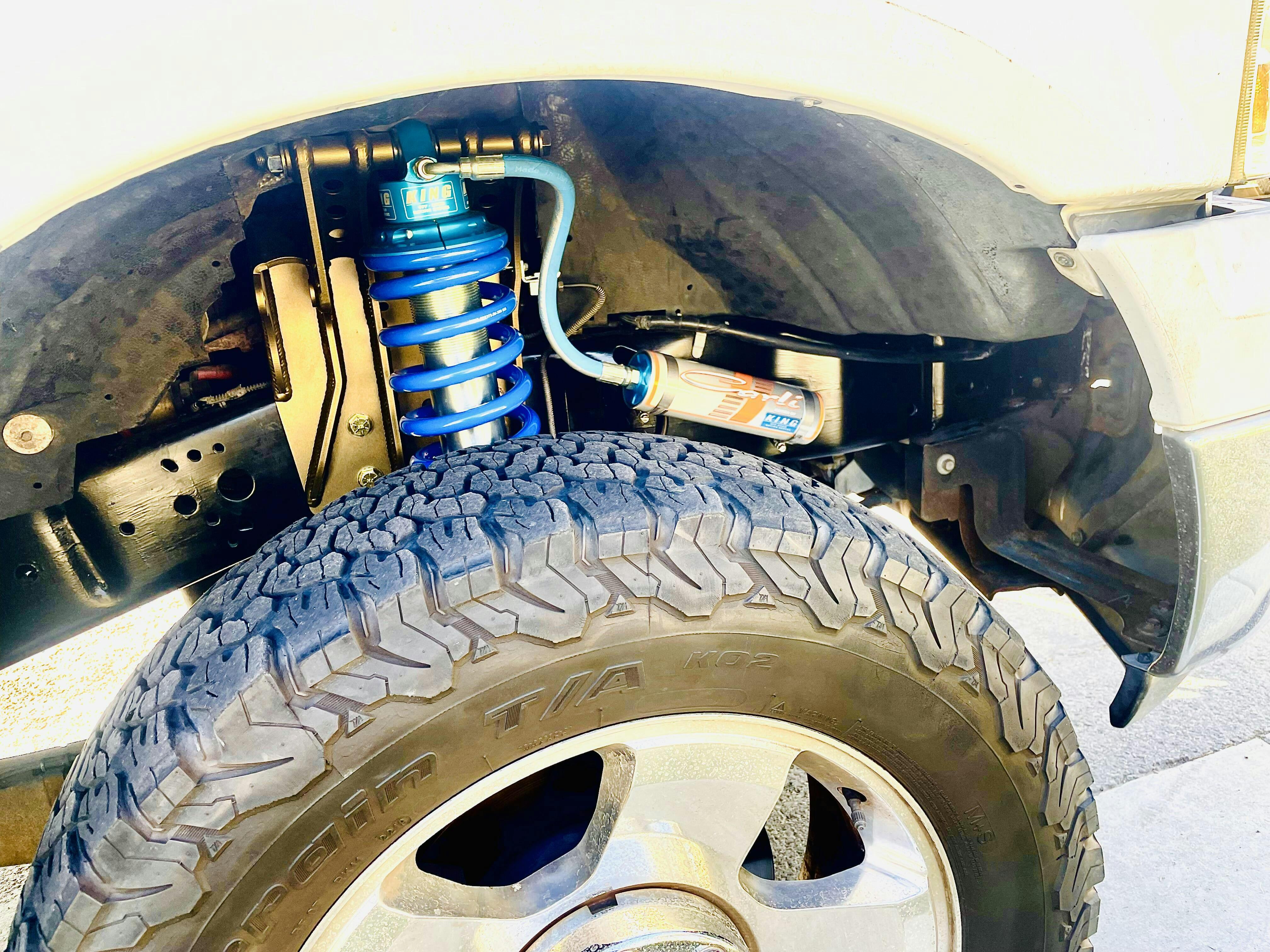

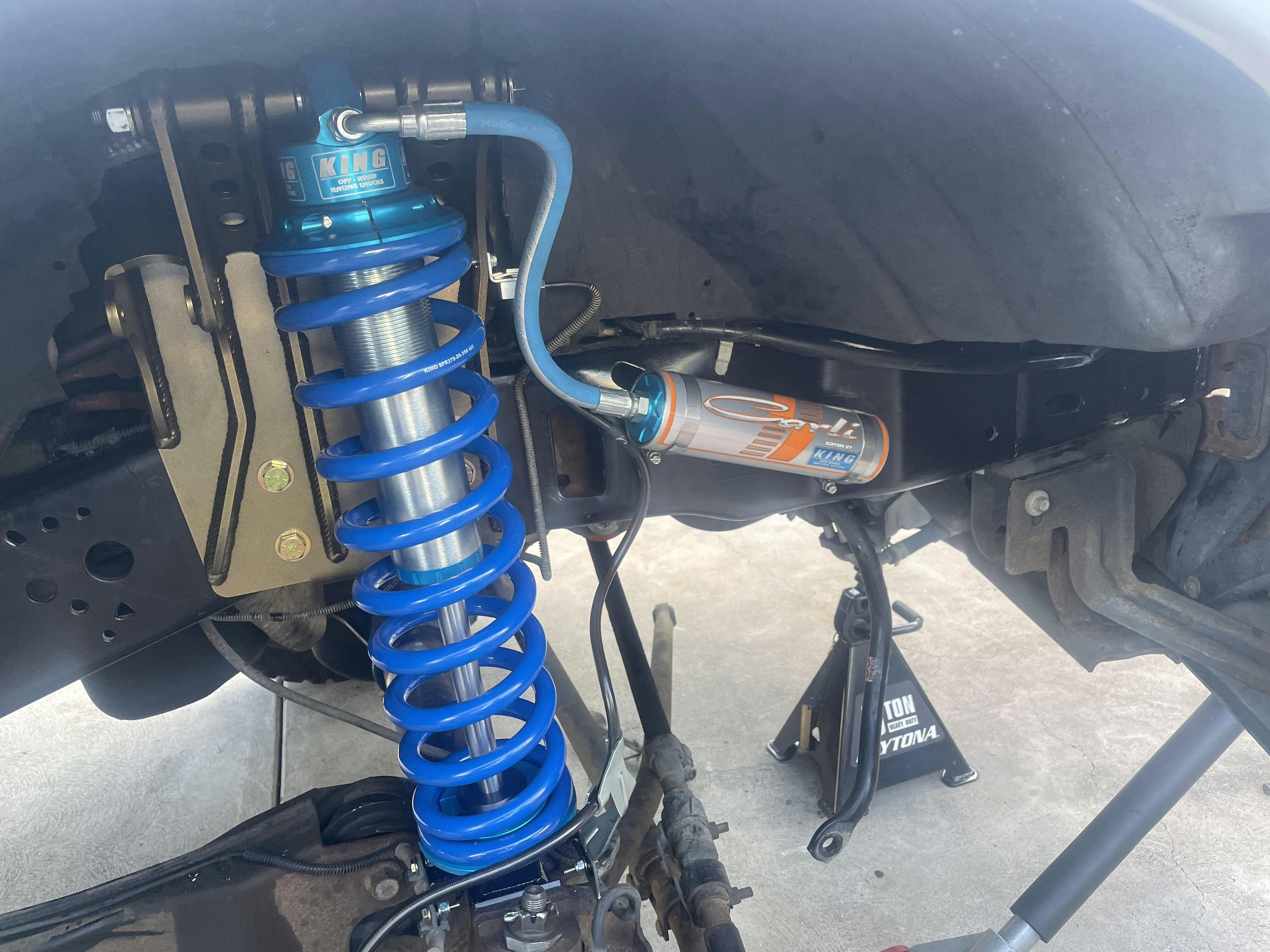

-King 2.5"x8" Custom Front Coilover Shocks
-King 2.5"x12" Custom Rear Shocks
-Coil Over Mounting Kit
-Adjustable Track Bar
-6 Leaf Progressive Add-A-Pack
-Billet Aluminum Front Bump Drops
-Stainless Braided Brake Lines
FEATURES
-17-4 Stainless Steel Shafts
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel
-Increased Suspension Response Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM
-No reduction of capability
ALTERED VEHICLE CHARACTERISTICS
-Level 2.5" of Lift on the Front
-1 Inch of Lift in Rear
-Vehicle is "Leveled"
WHEEL TRAVEL
-8" of Front Wheel Travel
-13" of Rear Wheel Travel
*F350's will require the factory F250 rear block to obtain a level stance if using the standard included rear add-a-pack. F250 blocks are not necessary if full progressive leaf springs are chosen above. F250 rear blocks are available in the options above.
FITMENT GUIDE
Year Model Part Number
2011-2016 FORD F250 / F350 4x4 CS-FLVL-CO25-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-CO25-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-CO25-05
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 4.5″ | 0-3.5″ | 10″ | 13″ | 2.5″ | 37″ x 13.5″ |
