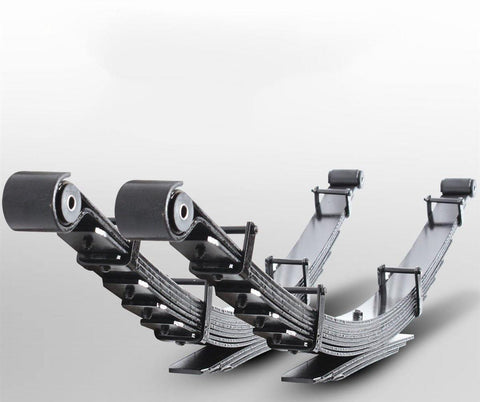

These full length progressive spring packs are built by Deaver Spring MFG specifically for Carli Suspension. These springs were designed as a two stage spring pack, enabling the truck to still have an admirable weight capacity while offering smooth and comfortable street driving performance. Unlike other brands, these leaf packs INCLUDE U-bolts!
SPECIFICATIONS
-Run 37" Tires Without Rubbing
-Supports 15" of Travel
-Sold as a Pair (both rear leaf springs) and INCLUDES U-Bolts
FITMENT GUIDE
3" Full Progressive Rear Leaf Springs (designed to provide approximately 1" of rear lift, designed for 3" height trucks)
Year Model Part Number
2010-12 DODGE RAM 2500/3500 4x4 Diesel CS-DFSP-10-D
2003-09 DODGE RAM 2500/3500 4x4 Diesel CS-DFSP-03-D
2010-12 DODGE RAM 2500/3500 4x4 Hemi CS-DFSP-10-H
2003-09 DODGE RAM 2500/3500 4x4 Hemi CS-DFSP-03-H
2010-12 DODGE RAM 2500/3500 4x4 Diesel Heavy Duty CS-DFSP-10-D-HD
2003-09 DODGE RAM 2500/3500 4x4 Diesel Heavy Duty CS-DFSP-03-D-HD
6" Full Progressive Rear Leaf Springs (designed to provide approximately 4" of rear lift, designed for 6" height trucks)
Year Model Part Number
2010-12 DODGE RAM 2500/3500 4x4 Diesel CS-DFSP-6-10-D
2003-09 DODGE RAM 2500/3500 4x4 Diesel CS-DFSP-6-03-D
Installation Instructions
*NOTE: the 1994-02 Ram 2500/3500 trucks are notorious for a driver’s side lean up to 1.5″ (lower on the driver’s side than the passenger’s side). Carli Coil Springs and Leaf Springs for the 1994-02 are designed side-specific to lift the Driver’s side more than the Passenger’s side to lessen/eliminate this common lean. However, we’ve had trucks require the taller spring be installed on the passenger’s side to achieve a level stance and trucks that require the same heigh springs be installed on both sides to achieve a leveled stance. These trucks are not an exact science and were designed long before CAD programs and design standardization. For this reason, we cannot guarantee the truck will sit level side to side nor is the corrective action a “warranty”. Our choice was either discontinue the product line OR present the customer with the design oddities so they know what they’re getting into. As there are not many performance options for the 2nd gen trucks, we elected to keep the product line as the side to side correction can be alleviated with the use of small spring spacers with NO performance degradation.
