The ICON Vehicle Dynamics Stage 2 S2 Secondary Shock System redefines the off-road capability of the 2007-UP Toyota Tundra by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a 2.5 Series CDC Valve secondary shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s front suspension is effectively doubled. ICON’s Compression Damping Control Valve technology allows for the end user to adjust the ride quality of the vehicle with 10 unique compression curve settings
As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable, mostly bolt-on upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2007-UP Toyota Tundra owners to upgrade in steps or all at once. The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel lower shock mounts make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product.
KEY FEATURES:
Drastically improves vehicle damping ability off-road
Increased vehicle stability on-road
Utilizes factory lower control arms
Maintains OE track width
Vehicle-specific tuned 2.5 Series secondary shocks provide increased damping and oil volume
CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
Shocks are fully rebuildable and revalveable
Simple and straightforward installation
Made in the USA
WHEEL & TIRE FITMENT INFO:
OEM Wheels & Tires: Yes
Aftermarket Wheels: 8-8.5" Wide, 5.75" Backspace
Aftermarket Tires: 35" x 12.50"
(Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Wheel: ICON Alloys 'Six Speed' | 17x8.5, 5.75" BS, 25mm Offset

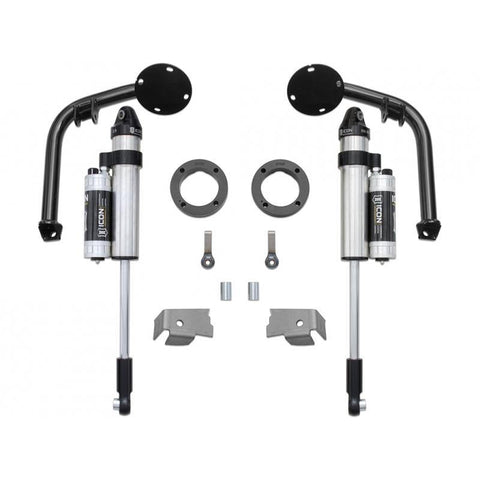

SYSTEM COMPONENTS:
56109 (QTY.1) | 07-UP TUNDRA S2 HOOP KIT
57722CP (QTY.1) | 07-UP TUNDRA S2 2.5 VS PB CDCV PAIR
