Carli 2017+ Ford Super Duty Commuter 2.0 (2.5"/3.5" lift) Suspension System - CJC Off Road

Carli 2017-2022 Ford Super Duty Commuter 2.0 (Level Height) Suspension System

Carli 2017-2022 Ford Super Duty Commuter 2.0 (Level Height) Suspension System

Name: Carli 2017-2022 Ford Super Duty Commuter 2.0 (Level Height) Suspension System
Brand: Carli Suspension
Price: 2250.0 USD
Availability: InStock

$2,250.00

Application

Diesel

Gas

Shock Valving Profile

Carli Full Replacement Leaf Pack Valving

Stock Rear Leaf Pack/Add a Pack Valving

Quantity

[{"id":51664700801394,"title":"Diesel \/ Carli Full Replacement Leaf Pack Valving","option1":"Diesel","option2":"Carli Full Replacement Leaf Pack Valving","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli 2017-2022 Ford Super Duty Commuter 2.0 (Level Height) Suspension System - Diesel \/ Carli Full Replacement Leaf Pack Valving","public_title":"Diesel \/ Carli Full Replacement Leaf Pack Valving","options":["Diesel","Carli Full Replacement Leaf Pack Valving"],"price":225000,"weight":38555,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31913772548194,"title":"Diesel \/ Stock Rear Leaf Pack\/Add a Pack Valving","option1":"Diesel","option2":"Stock Rear Leaf Pack\/Add a Pack Valving","option3":null,"sku":"CS-FLVL-COM-CS-17","requires_shipping":true,"taxable":true,"featured_image":{"id":29193822961762,"product_id":3706363117620,"position":1,"created_at":"2023-01-18T08:58:36-08:00","updated_at":"2023-03-21T11:34:21-07:00","alt":"Carli 2017+ Ford Super Duty Commuter 2.0 (2.5\"\/3.5\" lift) Suspension System - CJC Off Road","width":1500,"height":1255,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/CS-FLVL-C20-CS-17.jpg?v=1679423661","variant_ids":[31913772548194]},"available":true,"name":"Carli 2017-2022 Ford Super Duty Commuter 2.0 (Level Height) Suspension System - Diesel \/ Stock Rear Leaf Pack\/Add a Pack Valving","public_title":"Diesel \/ Stock Rear Leaf Pack\/Add a Pack Valving","options":["Diesel","Stock Rear Leaf Pack\/Add a Pack Valving"],"price":225000,"weight":38555,"compare_at_price":null,"inventory_management":null,"barcode":"Free Ships in 1-5 Business Days","featured_media":{"alt":"Carli 2017+ Ford Super Duty Commuter 2.0 (2.5\"\/3.5\" lift) Suspension System - CJC Off Road","id":21543142686818,"position":1,"preview_image":{"aspect_ratio":1.195,"height":1255,"width":1500,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/CS-FLVL-C20-CS-17.jpg?v=1679423661"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51664700834162,"title":"Gas \/ Carli Full Replacement Leaf Pack Valving","option1":"Gas","option2":"Carli Full Replacement Leaf Pack Valving","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli 2017-2022 Ford Super Duty Commuter 2.0 (Level Height) Suspension System - Gas \/ Carli Full Replacement Leaf Pack Valving","public_title":"Gas \/ Carli Full Replacement Leaf Pack Valving","options":["Gas","Carli Full Replacement Leaf Pack Valving"],"price":225000,"weight":38555,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned and completely custom spec shocks. Each shock package goes through months of testing, development, tuning, and valving. The Back Country system offers great on road ride, with increased off road capability for higher speed driving.

The Carli Commuter system is designed for 2017-2022 Ford Super Duty trucks wanting improved ride for daily driving and standard truck usage. While this system levels the truck, the rear goal is dramatically improved ride quality, which is accomplished through completely custom Carli spec 2" diameter shocks, coils tuned specifically for gas and diesel applications, and the highest quality USA made supporting parts. With almost double the factory wheel travel and a huge change in ride, this Carli Commuter level height system is in a league of its own.

The Commuter package shocks are offered in two valving profiles. Select the stock leaf pack/add a pack or Carli full replacement rear leaf packs accordingly to what you'll be using on the truck. We do not recommend running the full leaf tune with stock leaf packs and vise versa.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. If you find your truck is rear low, we recommend this block kit. Please note that the Commuter rear shocks are tuned for Carli leaf packs. If you want to retain stock rear leaf packs, you'll want to use the Signature Series system tuned for stock rear leaf packs.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017 to 2022.

2023+ Super Duties now have their own line of level height systems which you can find here.

SPECIFICATIONS

-2.5" Front Lift / 3.5" on 2020+ Trucks
-Custom coil spring rate
-Maintains steering geometry

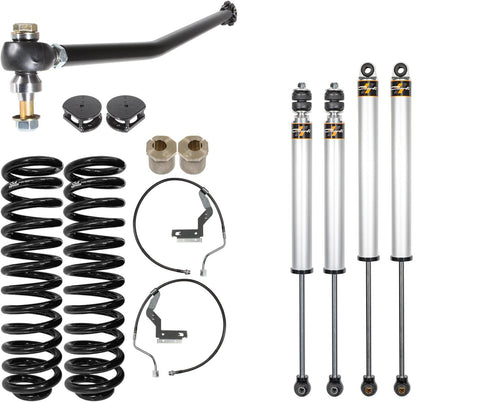

COMPONENTS

-Carli Front Ford Super Duty 2.5" Leveling Coils

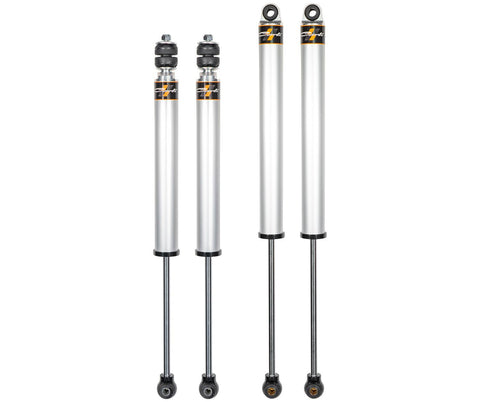

-Carli 2.0 IFP Front/Rear Custom Tuned Shock Package
-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops

OPTIONAL

-Carli 2017+ Ford Progressive Add-A-Packs & Rear Bump Drops
-Carli 2017+ Ford Full Progressive Rear Leaf Springs
-Carli Ford Super Duty Fabricated Radius Arms

FITMENT GUIDE

Front Travel	Rear Travel
9.6″	13″

Shock Diameter	Tire Fitment
2″	37″ x 12.5″

Instructions – CS-FLVL-C20-17 – Leveling Commuter System

Instructions – CS-FLRC-05 – Leveling Coil Springs, Front

Instructions – CS-FORDBBL-17 – Ford Brake Lines, 2.5 & 4.5 inch

Instructions – CS-FATB-17 – Ford Adjustable Track Bar

Instructions – CS-FCASTERSHIM-25 – Castershims

Instructions – CS-FSBD-LVL-17 – Ford Front Sway Bar Drops, 2.5 inch

Instructions – CS-FEL-LVL-17 – Ford Extended End Links, Leveling

Instructions – CS-FTSB-LVL-17 – Ford Torsion Sway Bar Kit, Leveling

Instructions – CS-FPAP-17 – Progressive Add-a-Packs
